1x8 Fiber Optic Splitter PLC LGX Box SC APC Connector For FTTX PON

Product Categories
Shenzhen damu technology co. LTD
Contact Now

1x8 Fiber Optic Splitter PLC LGX Box SC APC Connector For FTTX PON

  • 1
  • 2
  • 3

Brand Name : DAMU

Model Number : DM-LGX

Certification : CE ROSH ISO9001

Place of Origin : China

MOQ : 50

Payment Terms : T/T

Supply Ability : 50000/month

Delivery Time : 3-7

Packaging Details : NORMAL PACKING

Fiber type : G.657A with 0.9mm loose tube,G657

Application : FTTH FTTB FTTX Network,CATV,Splitter,LAN,FTTH FTTB FTTX PON CATV

Product name : 1x2 lgx cassette type fiber optic splitter

Operating temperature : -40℃ to 85℃

Connector : SC/APC

Type : 1x8,APC,PLC Splitter

Material : ABS+PC

Warranty : 3 years

Color : White

Fiber length : 1m or customized

Return loss : ≥50 dB

Splitter : splitter,1x8 splitter as well as 2x4,2x8,1x2 1x32 1x64,available 1x4

Contact Now

Product Description

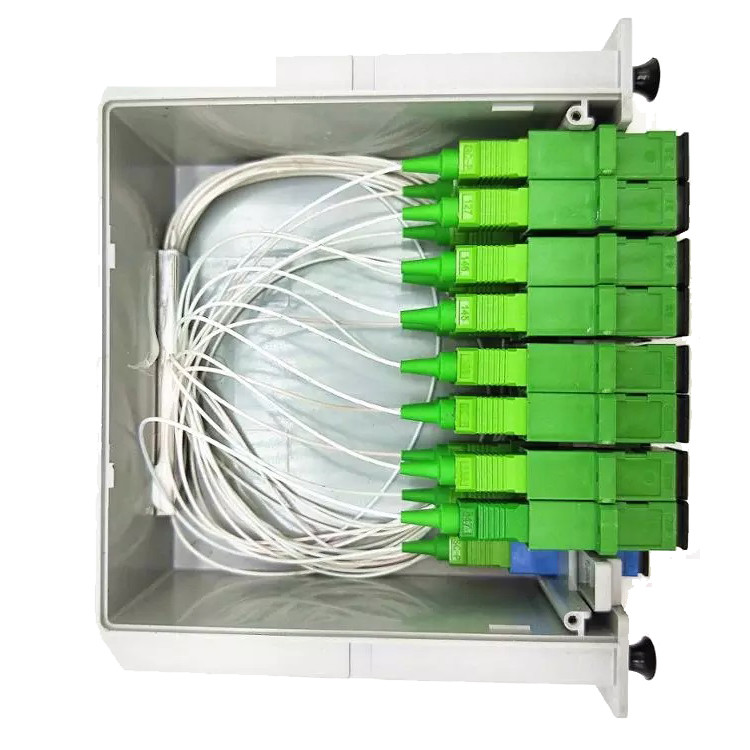

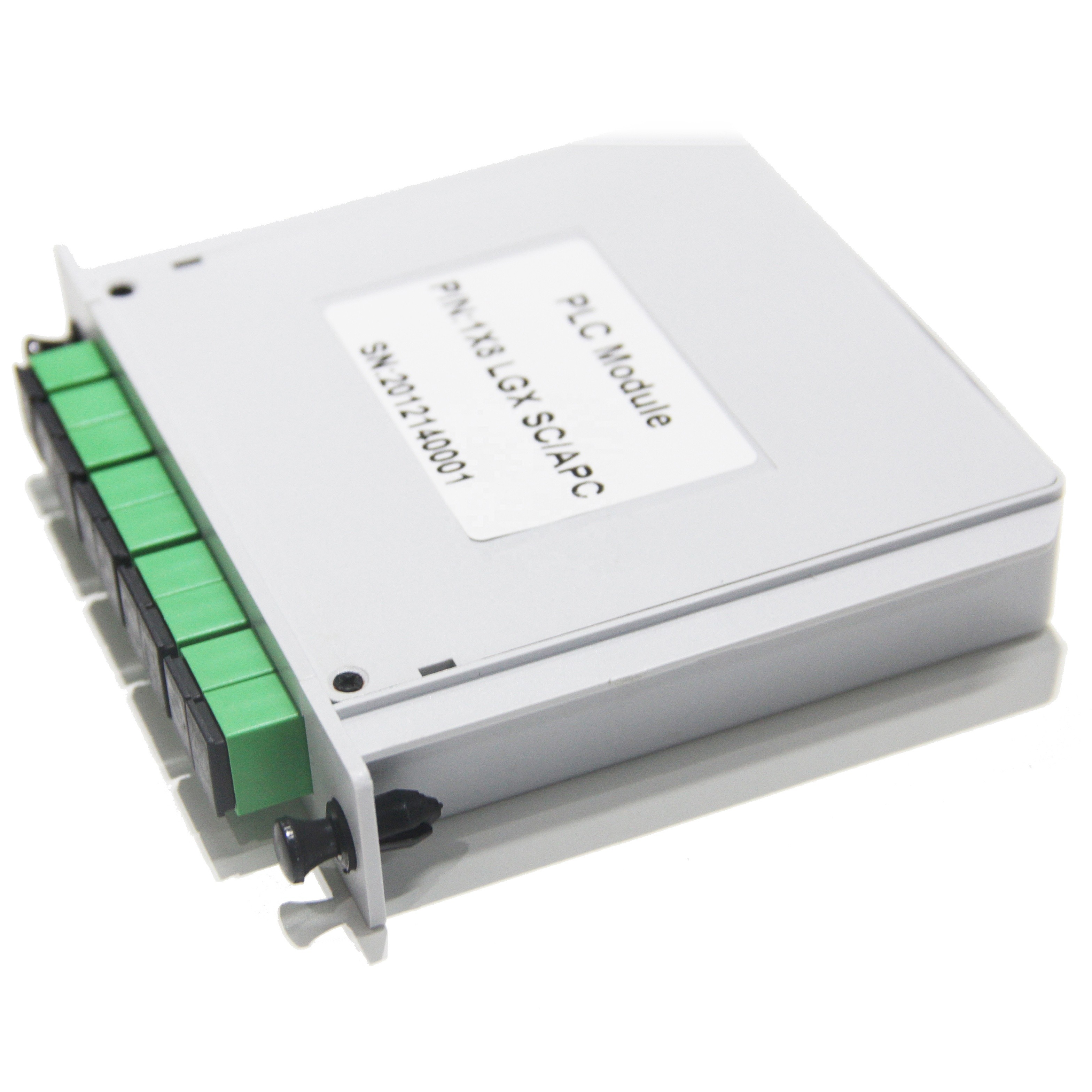

Cassette Type FTTH Fiber Optic 1x8 PLC Splitter LGX Box with SC APC Connector

1. Description:

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating
wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

1x8 Fiber Optic Splitter PLC LGX Box SC APC Connector For FTTX PON

2. Specification:

Parameter
Specification
Operating Wavelength (nm)
1260 ~ 1650
Type
1x4
1x8
1x16
2x4
2x8
2x16
1x32
2x32
1x64
Insertion Loss (dB) Max. *
<7.3
<10.5
<13.5
<7.6
<11.2
<14.5
<16.2
<18.2
<20.5
Uniformity (dB) Max.*
<0.8
<1.0
<1.5
<1.0
<1.5
<2.0
<2.0
<2.5
<2.5
PDL(dB)Max.*
<0.2
<0.2
<0.3
<0.3
<0.3
<0.4
<0.3
<0.4
<0.3
Directivity (dB)
≥55
Return Loss (dB)
UPC ≥55 APC ≥60
Operating Temperature (°C)
-5~ +75
Storage Temperature (°C)
-40 ~ +85
Fiber length
1m or custom length
Fiber Type
Corning SMF-28e fiber
Connector Type
Custom specified
Power Handling (mW)
300

Table 1 – 1×N PLC Splitter

Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)(Min/Max)
3.8/4.0
7.2/7.4
10.5/10.7
13.5/13.7
16.5/16.9
20.5/21.0
Loss Uniformity (dB)
0.6
0.6
0.8
1.2
1.5
2.5
Return Loss (dB)
55
55
55
55
55
55
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
55
55
55
55
55
55
Operating Temperature (℃)
-40～+85
Storage Temperature (℃))
-40～+85
Operating Humidity
5% ~ 85% RH
Storage Humidity
5% ~ 85% RH
Device Dimension (mm) (L×W×H)
40×4×4
40×4×4
40×4×4
50×4×4
50×7×4
60×12×4
Module Dimension (mm) (L×W×H)
100×80×10
100×80×10
100×80×10
120×80×18
140×115×18
140×115×18
Mini-Module Dimension (mm) (L×W×H)
50×7×4
50×7×4
60×7×4
60×12×4
80×20×6
N/A
Table 2 – 2×N PLC Splitter
Parameters
2×2
2×4
2×8
2×16
2×32
2×64
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)(Min/Max)
3.9/4.2
7.5/7.8
11.2/11.5
14.2/14.5
17.2/17.7
21.0/21.5
Loss Uniformity (dB)
0.8
1.5
1.5
1.8
2.0
2.5
Return Loss (dB)
55
55
55
55
55
55
Polarization Dependent Loss(dB)
0.2
0.2
0.4
0.4
0.4
0.4
Directivity (dB)
55
55
55
55
55
55
Operating Temperature(℃))
-40～+85
Storage Temperature (℃))
-40～+85
Operating Humidity
5% ~ 85% RH
Storage Humidity
5% ~ 85% RH
Device Dimension (mm) (L×W×H)
40×4×4
50×4×4
50×4×4
50×7×4
60×7×4
60×12×4
Module Dimension (mm) (L×W×H)
100×80×10
100×80×10
100×80×10
120×80×18
140×115×18
140×115×18
Mini-Module Dimension (mm) (L×W×H)
60×7×4
60×7×4
60×7×4
60×12×4
80×20×6
N/A

3. Feature:

* Low Insertion loss

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Wide Operating Wavelength: From 1260nm to 1650nm

* Wide Operating Temperature: From -40℃to 85℃

*High Reliability and Stability

4. Application:

* Low Insertion Loss.

* Fiber to home(FTTH)

* Passive Optical Networks(PON)

* Local Areal Networks(LAN)

* Fiber communication systems

1x8 Fiber Optic Splitter PLC LGX Box SC APC Connector For FTTX PON1x8 Fiber Optic Splitter PLC LGX Box SC APC Connector For FTTX PON1x8 Fiber Optic Splitter PLC LGX Box SC APC Connector For FTTX PON
